Products

일반조명

링, 돔, 동축, 플랫, 라인 등 다양한 형태의 산업용 LED 조명

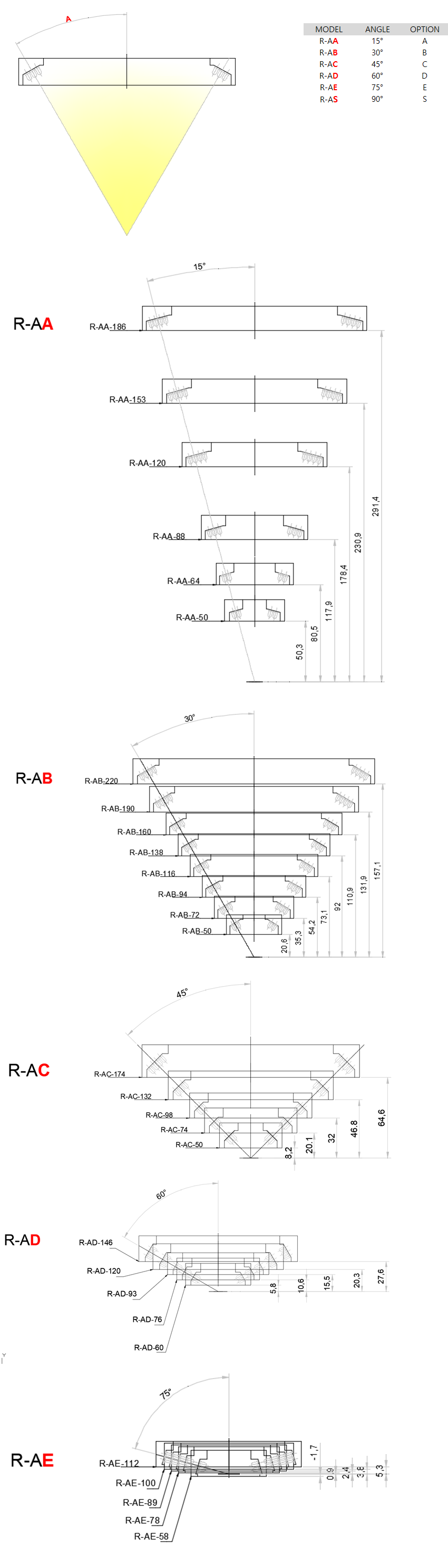

Angle Ring(각도별)

총 37개 모델

No.	색상 / 소비전력(W)	치수	전압	LED 수량	자료
1	W / R / B / G 3.4 / 1.7 / 3.4 / 3.4	outer Ø50, inner Ø20, height 18mm	12V/24V	42EA	PDF DWG
2	W / R / B / G 4.8 / 2.4 / 4.8 / 4.8	outer Ø64, inner Ø34, height 18mm	12V/24V	60EA	PDF DWG
3	W / R / B / G 10.1 / 5.1 / 10.1 / 10.1	outer Ø88, inner Ø48, height 20mm	12V/24V	126EA	PDF DWG
4	W / R / B / G 19.2 / 9.6 / 19.2 / 19.2	outer Ø120, inner Ø72, height 20mm	12V/24V	240EA	PDF DWG
5	W / R / B / G 26.9 / 13.5 / 26.9 / 26.9	outer Ø153, inner Ø105, height 20mm	12V/24V	336EA	PDF DWG
6	W / R / B / G 34.6 / 17.3 / 34.6 / 34.6	outer Ø186, inner Ø138, height 20mm	12V/24V	432EA	PDF DWG
7	W / R / B / G 3.9 / 2 / 3.9 / 3.9	outer Ø50, inner Ø20, height 18mm	12V/24V	48EA	PDF DWG
8	W / R / B / G 8.2 / 4.1 / 8.2 / 8.2	outer Ø72, inner Ø35, height 20mm	12V/24V	102EA	PDF DWG
9	W / R / B / G 11.6 / 5.8 / 11.6 / 11.6	outer Ø94, inner Ø57, height 20mm	12V/24V	144EA	PDF DWG
10	W / R / B / G 14.4 / 7.2 / 14.4 / 14.4	outer Ø116, inner Ø79, height 20mm	12V/24V	180EA	PDF DWG
11	W / R / B / G 17.3 / 8.7 / 17.3 / 17.3	outer Ø138, inner Ø101, height 20mm	12V/24V	216EA	PDF DWG
12	W / R / B / G 20.2 / 10.1 / 20.2 / 20.2	outer Ø160, inner Ø123, height 20mm	12V/24V	252EA	PDF DWG
13	W / R / B / G 30.8 / 15.4 / 30.8 / 30.8	outer Ø190, inner Ø144, height 23mm	12V/24V	384EA	PDF DWG
14	W / R / B / G 34.6 / 17.3 / 34.6 / 34.6	outer Ø220, inner Ø173, height 23mm	12V/24V	432EA	PDF DWG
15	W / R / B / G 3.9 / 1.9 / 3.9 / 3.9	outer Ø50, inner Ø20, height 20mm	12V/24V	48EA	PDF DWG
16	W / R / B / G 4.8 / 2.4 / 4.8 / 4.8	outer Ø60, inner Ø30, height 20mm	12V/24V	60EA	PDF DWG
17	W / R / B / G 6.8 / 3.4 / 6.8 / 6.8	outer Ø74, inner Ø44, height 20mm	12V/24V	84EA	PDF DWG
18	W / R / B / G 7.7 / 3.9 / 7.7 / 7.7	outer Ø84, inner Ø54, height 20mm	12V/24V	96EA	PDF DWG
19	W / R / B / G 8.7 / 4.4 / 8.7 / 8.7	outer Ø98, inner Ø68, height 20mm	12V/24V	108EA	PDF DWG
20	W / R / B / G 14.4 / 7.2 / 14.4 / 14.4	outer Ø114, inner Ø78, height 23mm	12V/24V	180EA	PDF DWG
21	W / R / B / G 17.3 / 8.7 / 17.3 / 17.3	outer Ø132, inner Ø96, height 23mm	12V/24V	216EA	PDF DWG
22	W / R / B / G 20.2 / 10.1 / 20.2 / 20.2	outer Ø150, inner Ø114, height 23mm	12V/24V	252EA	PDF DWG
23	W / R / B / G 30.8 / 15.4 / 30.8 / 30.8	outer Ø174, inner Ø132, height 26mm	12V/24V	384EA	PDF DWG
24	W / R / B / G 4.8 / 2.4 / 4.8 / 4.8	outer Ø60, inner Ø23, height 20mm	12V/24V	60EA	PDF DWG
25	W / R / B / G 6.8 / 3.4 / 6.8 / 6.8	outer Ø76, inner Ø39, height 20mm	12V/24V	84EA	PDF DWG
26	W / R / B / G 8.7 / 4.4 / 8.7 / 8.7	outer Ø93, inner Ø56, height 20mm	12V/24V	108EA	PDF DWG
27	W / R / B / G 17.3 / 8.7 / 17.3 / 17.3	outer Ø120, inner Ø78, height 23.5mm	12V/24V	216EA	PDF DWG
28	W / R / B / G 20.2 / 10.1 / 20.2 / 20.2	outer Ø146, inner Ø104, height 23.5mm	12V/24V	252EA	PDF DWG
29	W / R / B / G 4.8 / 2.4 / 4.8 / 4.8	outer Ø58, inner Ø20, height 20mm	12V/24V	60EA	PDF DWG
30	W / R / B / G 6.8 / 3.4 / 6.8 / 6.8	outer Ø78, inner Ø40, height 20mm	12V/24V	84EA	PDF DWG
31	W / R / B / G 8.7 / 4.4 / 8.7 / 8.7	outer Ø89, inner Ø50, height 20mm	12V/24V	108EA	PDF DWG
32	W / R / B / G 9.6 / 4.8 / 9.6 / 9.6	outer Ø100, inner Ø61, height 20mm	12V/24V	120EA	PDF DWG
33	W / R / B / G 10.6 / 5.3 / 10.6 / 10.6	outer Ø112, inner Ø72, height 20mm	12V/24V	132EA	PDF DWG
34	W / R / B / G 2 / 1 / 2 / 2	outer Ø67, inner Ø32, height 10mm	12V/24V	24EA	PDF DWG
35	W / R / B / G 3.9 / 2 / 3.9 / 3.9	outer Ø112, inner Ø78, height 10mm	12V/24V	48EA	PDF DWG
36	W / R / B / G 5.8 / 2.9 / 5.8 / 5.8	outer Ø147, inner Ø114, height 10mm	12V/24V	72EA	PDF DWG
37	W / R / B / G 7.7 / 3.8 / 7.7 / 7.7	outer Ø204, inner Ø170, height 10mm	12V/24V	96EA	PDF DWG

표를 좌우로 밀어 전체 사양을 확인하세요.
